CentOS Image for Cloud-init on VMWare Cloud Assembly Services

My current customer is looking at using VMware Cloud Assembly Services (CAS) for their next generation SDDC.  It looked like CAS would be able to address some of their Ansible and other OS customization use cases.

Ubuntu cloud ready OVA works great, but unfortunately a cloud ready CentoOS OVA was not available (they use RHEL and CentOS as their primary Linux Distro).

Well it took me a bit, but was able to build an OVA that worked.  Here is how I did it.

First I built a clean CentOS 7.x image using the minimal install ISO.  I’m not going through this step by step as its been well documented else where.

Secondly, make sure to change the CD ROM back to client after reboot.  Do not leave it pointed at one on a datastore, even if it is not connected at power on.  Why? Well a Cloud-Init ISO is mounted on the machine when it powers up.  CI failed to run when I left the CD pointed at and ISO on a datastore.

After the initial reboot, I simply updated the machine, and installed open-vm-tools and cloud-init.

#yum update -y

#yum install -y open-vm-tools cloud-init

Then cleaned up the machine.

#cloud-init clean --logs


This last command will return the machine to an uninstalled state, and shut it down.

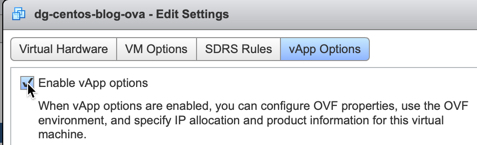

Next, within vCenter I enabled the vApp Options.


Then gave the appliance a name and added a few properties.

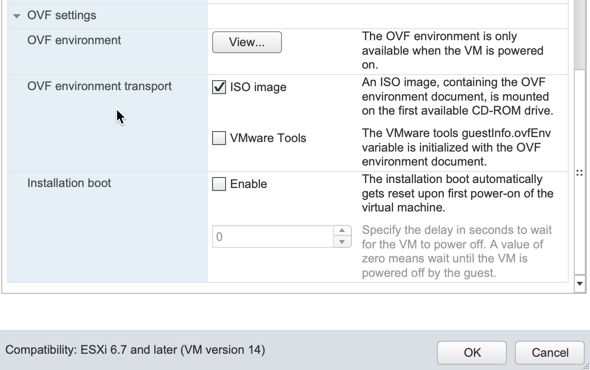

And finally enable ISO as the environment transport.


After saving the settings, I converted it into a template and imported it into CAS.

From there I created a new Image Mapping, and gave it a try in CAS.


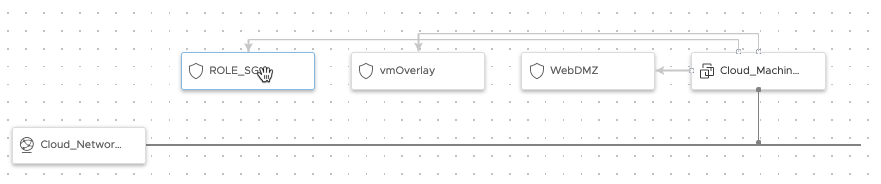

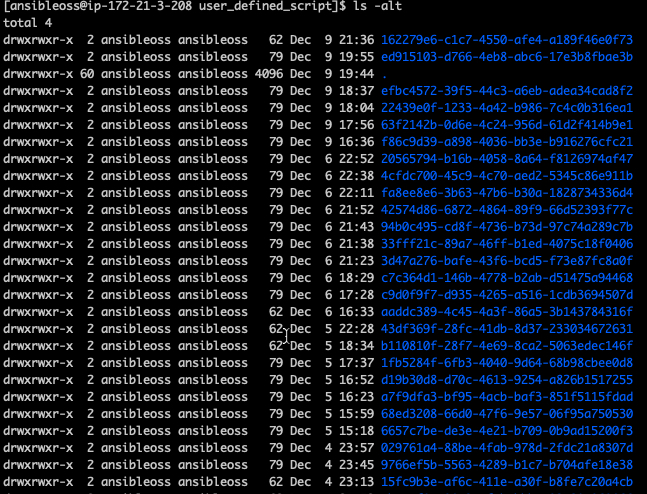

The blueprint and Ansible playbook can be found at this github repository.



vRA Custom Forms Regex

A recent customer request was to have the linux machine names entered manually, always be in lower case, and be 13 characters long.

Initially I tinkered with a basic Event Broker Service (EBS) Subscription to simply change the ‘Hostname’ to lower case, but then decided to enforce it in a custom form.

My first task was finding the correct expression using some search sites. After a few clicks I was able to find what I was looking for.

My working expression ended up looking like this.

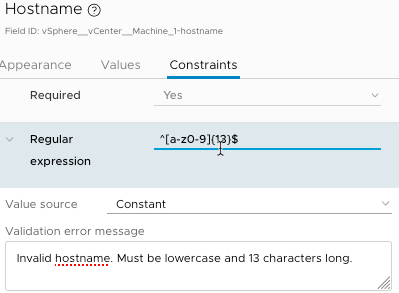

Click on the Hostname field on your custom form, then the Constraints tab and paste the expression in Regular expression, and provide a useful error in the Validation error message text box.


Make sure to click the form Save button before moving to another field.  I failed to do that a few times, only to discover a blank field when troubleshooting.


While the customer didn’t have a specific requirement for the other fields, I decided to research and test some other expressions for future reference. I’m sure some additional tweaking will be needed, but here goes.

IP Address / DNS Server / Gateway


Subnet Mask


Domain name


There you go. As always your mileage may vary.


VMware PKS Bosh CLI client SSL trust

This past week or so has been spent deploying VMware PKS Enterprise in my lab.  My main installation guide was provided by Pivotal’s Installing Enterprise PKS on vSphere with NSX-T.

All was going well until I tried to deploy a cluster.  I could see the machines being deployed in vCenter and various NSX-T components being deployed.  However, the cluster deployment failed with the following error.

Name:                     cluster-03
Plan Name:                small
UUID:                     ad4ba957-35bc-4500-ace8-1cfda0238a83
Last Action:              CREATE
Last Action State:        failed
Last Action Description:  Instance provisioning failed:
..... task-id: 289, ... result: 2 of 7 pre-start scripts failed. Failed Jobs: ...

As you can see task 289 failed.  Now how the heck do I get the details of the failed task?

The bosh cli client appeared to be the answer. Reading further it looked like I needed to set some environment variables to make it work properly.

After reading a few online documents, I was able to find the Bosh Command Line Credentials (Actually the bosh environment variables) by clicking on the Bosh Tile in Operations Manager, clicking on the Credentials tab, then clicking the link next to Bosh Commandline Credentials.


The provided BOSH_CA_CERT path and file do not exist on my jump machine.  I was able to download the root CA following these steps. (Installing uaac is beyond the scope of this document).

uaac target https://opsman.corp.local/uaa --skip-ssl-validation

uaac token owner getClient ID: opsman
Client secret:
User name: admin
Password: *******

uaac contexts

Copy the admin bearer token from the client_id section (the token is actually called access_token).


  skip_ssl_validation: true

  ca_cert: root_ca_certificate


      client_id: admin

      access_token: eyJhbGci .....

      token_type: bearer

Finally downloading the certificate to my jump machine.

curl https://opsman.corp.local/api/v0/security/root_ca_certificate -X GET -H "Authorization: Bearer eyJhbGci ....." -k > root_ca_certificate

My reformatted bosh environment settings, along with the correct path to my certificate ended up like this.

export BOSH_CLIENT=ops_manager
export BOSH_CLIENT_SECRET=MP0................Blah!
export BOSH_CA_CERT=/root/root_ca_certificate <--- Correct path and file
export BOSH_ENVIRONMENT=bosh.corp.local

After pasting the variables into my console, I attempted to get the details from the failed task.

bosh task 289
Validating Director connection config:
  Parsing certificate 1: Missing PEM block
Exit code 1

What the heck?  Apparently the downloaded certificate is actually in JSON format, AND it includes ‘\n’ as line returns.

{"root_ca_certificate_pem":"-----BEGIN CERTIFICATE-----\nMIIDUDCC...
cQswzKxnm8ZfedoVheV9OBnYQyrHV2ePG/W+kfCoqXD\n ....
CeEzZD6ZicGuv7KcYNP\n...\n-----END CERTIFICATE-----\n"}

Using Notepad ++ I replaced all of the ‘\n’ with a line return.


Then I removed the quotes, brackets , root_ca_certificate.pem section, and deleted all of the other newlines leaving me with a clean certificate (Each line needs to be 64 characters long).


After saving this on my machine, I attempted to run the command again, this time using the –ca-cert option pointing to the new certificate.

bosh task 289 --ca-cert root_ca_2.pem
Using environment 'bosh.corp.local' as client 'ops_manager'

Task 289

Task 289 | 16:58:24 | Updating instance master: master/51431548-e35a-471b-853f-26dc7eca9f7c (0) (canary) (00:02:06)

                    L Error: Action Failed get_task: Task ...
Task 289 | 17:00:30 | Error: Action Failed get_task: ...
Task 289 Started  Wed May  8 16:55:34 UTC 2019
Task 289 Finished Wed May  8 17:00:30 UTC 2019
Task 289 Duration 00:04:56
Task 289 error

Capturing task '289' output:
  Expected task '289' to succeed but state is 'error'
Exit code 1


Now all all I need to do is figure out the error.  Oh joy!


vRA Custom Form CSS rendering issues

I ran into some interesting issues when trying to develop a custom form in vRealize Automation.

The first one was noticed when I tried to apply font-size to a field.  After doing some research and watching a few videos, it looked like some Field ID’s simply could not be mapped in CSS.  The main issue is the Field ID has a tilde ‘~’ in it, which is not a valid CSS ID.


A quick search resulted in an amazingly simple solution.  Escape the tilde with a backslash ‘\’.  Stupid easy!

My CSS up to this point contained the following;

body {
font-size: 18px;

#vSphere__vCenter__Machine_1\~size {
font-size: 14px;

#integerField_cda957b7 {
font-size: 20px;
font-style: italic;

#vSphere__vCenter__Machine_1\~VirtualMachine.Disk1.Size {
font-size: 32px;

Which produced this form.


The integerField and Size (Component Profile) updated properly, but the Requested Disk Size didn’t.  (This field is actually updated using an external vRO action to change the Integer into a String, then applied to a custom property).  Ok, what I was actually after was getting rid of the Label word wrap, but stumbled across the font-size issue along the way.

After digging through some debugging info I ran into two classes, one was ‘grid-item’, and the second was ‘label.field-label.required’.


After updating CSS, I was finally able to change the Requested Disk Size font, as well as fixed the word wrap issue.

My final result is a good starting point.  Both Size and Requested Disk Size fields had a font size of 18, and the integer field had an italicized font with the correct size.  The shadow on the Size Label was just for fun 🙂


My final CSS looks like this;

body {
font-size: 18px;

.label.field-label.required {
width: 80%!important;

.grid-item {
width: 80%!important;

#vSphere__vCenter__Machine_1\~size {
/* font-size: 14px; */
color: blue;
text-shadow: 3px 2px red;
#integerField_cda957b7 {
font-size: 20px;
font-style: italic;
#vSphere__vCenter__Machine_1\~VirtualMachine.Disk1.Size {
/* does not work with custom properties */
/* need to dig into label.field.label.* */
font-size: 32px;

Well its’ about the time of day. Be well.

Migrating from NSX-V to NSX-T Error

The project this week was to convert my lab environment from NSX-V to NSX-T to support some upcoming projects.

Apparently unconfiguring the hosts through the NSX-V interface didn’t work as expected, and in fact didn’t remove all of the NSX-V components.

When trying to install NSX-T (2.3.1) on my vSphere 6.7 hosts, I received the error ‘File path of /etc/vmsyslog.conf.d/dfwpktlogs.conf is claimed by multiple none-overlay VIBS’.


After logging into one of the hosts and running ‘esxcli software vib list | grep -i nsx’ I discovered a stray NSX package called esx-nsxv.

#esxcli software vib list | grep -i nsx
esx-nsxv 6.7.0-0.0.7563456 VMware VMwareCertified 2019-03-08

This was quickly rectified by placing the host in maintenance mode, then running the following command.

#esxcli software vib remove -n esx-nsxv

Which spit out the following.

Removal Result
Message: Operation finished successfully.
Reboot Required: false
VIBs Installed:
VIBs Removed: VMware_bootbank_esx-nsxv_6.7.0-0.0.7563456
VIBs Skipped:

After exiting maintenance mode I retried the installation by selecting ‘Resolve’ in NSX-T.


NSX-T installation on the host then completed successfully.

Nested NSX-T cluster on vSphere 6.7U1

I took some time this week to update William Lams Nested vSphere 6.5 with NSX-T to Nested vSphere 6.7U1/NSX-T 2.3.1, to kickstart a new customer project.

This version updated some of the vCSA OVF JSON fields, and added support for PowerShell 6.1. It was tested against PowerCLI 11.2 on a Windows 10 machine.

The original post can be found at virtuallyghetto.

You can find the new, updated file(s) at nested-nsxt231-vsphere67u1.


NvIPAM is Open Source

NvIPAM is open source as of today.

After some significant work over the past few weeks, I’m pleased to announce the publication of NvIPAM on Github.

This is really an Alpha release, as I’m sure lots of things will change over the course of time.

The installation is handled by an Ansible playbook, which will install and configure the CentOS machine.  Once installed you’ll need to initialize the database, then start the service.

My plan is to start documenting the project on the Wiki page as I have time.  These articles will cover installing and configuring the vRO plugin, integrating it with vRA, deploying an external vRO appliance (for vSphere IPAM integration).

You can down load your copy at https://kovarus.github.io/NvIPAM/.

Please feel free to add any issues, or even branch it and take it in your own direction.

Stay tuned.


Basic vRA Endpoint workflow progress

Some really good progress has been made this week, to include;

  • Adding NvIPAM as legitimate vRA Endpoint
  • Get IP Rangescropped-nvipam-1.png
  • Allocate IP from IPAM
  • Release IP to IPAM

The first, took off after looking at the code in the SDK package.  One of the main things I found was it required two actions, and four workflows.  I simply copied the ones listed int the SDK into my own folders, and off I went.  Actually the only rea


l change was just changing the Id’s in my copied workflow to match the action path, and the workflow ID’s.  Danged if it didn’t get added the first time.



After the type was added, I simply went in added my IPAM server as  an NvIPAM IPAM endpoint.

Get IP Ranges workflow took some major rework as the SDK version uses hard-coded pools, and did not have support for a token authentication.  Bearer tokens will be used throughout the project so an action was developed for reuse.  The username, password and baseUrl are provided by vRA as an Endpoint composite type.

After making some additional changes to one of the actions and the workflow, I was able to add an IPAM pool to vRA, and assign it to a reservation. The Range Name is generated by IPAM by appending the pool to the network to simplify pool discovery (See previous posts).


The basic allocate and release workflows are also working for basic External network IP management.  I’ll go into more detail about those in later posts.

DNS management is next on the list.  Stay tuned.



NvIPAM Ansible Playbook

Man I love it when a play starts to come together. cropped-nvipam-1.png

First off, the refactoring is done.  Oh yeah.

Plus an Ansible playbook to prepare and setup NvIPAM on a basic CentOS virtual machine is now working.  The playbook installs and configures the following

  1. Installs the basic OS requirements
  2. Installs and configures Postgresql
  3. Installs and configures PowerDNS authoritative and recursor servers
  4. Installs and configures Python virutal environment
  5. Installs and configures NGINX
  6. Setups uWSGI
  7. And installs the application

And if that isn’t enough, I dumped the Swagger into a Postman file to help with continuing development agains vRealize Orchestrator (and other CMS).

The current install script is available at NvIPAM setup

The next step is to start tinkering with the vRA IPAM SDK.

NvIPAM basic refactoring done

Virtualization aware IPAM

I’ve spent the last few days refactoring the project.  The main reason for refactoring was accessing the PowerDns database.  The previous version was attempting to use two databases.  One for IPAM/CMDB and second remote one for PowerDns.  This was causing all sorts of issues.

The new model has a single shared database, containing all the tables. PowerDns tables are created manually by importing the schema from their site.  The other tables are created using flask-migrate.

My next step after adding the few remaining DNS routes is to move it up to my CentOS machine and front end the whole thing with Gunicorn or some other WSGI using Ansible.

Stay tuned.
