vRAC Security Groups lessons learned

A recent vRealize Automation Cloud (vRAC) use case involved applying AWS Security Groups(SG) when deploying a new machine. First, every new AWS machine will be assigned two standard SGs. A third one will be assigned based on the application type (Web, App, DB).

After looking at the Cloud Assembly blueprint expression syntax page, it looked like we would be limited to only two options in our condition (if else). For example, ${input.count < 2 ? "small" : "large"}. Or if input.count < 2 then “small” else “large”.

But we have three options, not two. Effectively we needed.

if (extraSG == 'web' {
then web_sg }
else if (extraSG = 'app' {
then app_sg }
else {
db_sg
}

Or using javascript shorthand.

extraSG == 'web' ? web_sg : extraSG == 'app' ? app_sg : db_sg

Or converted into something vRAC can consume.

${input.extraSG == "web" ? resource.WEB_SG.id : input.extraSG == "app" ? resource.APP_SG.id : resource.DB_SG.id}

Lets see what happens when we deploy this blueprint selecting WEB_SG from the list.

formatVersion: 1
inputs:
  extraSG:
    type: string
    title: Select extra SG
    default: web
    oneOf:
      - title: WEB_SG
        const: web
      - title: APP_SG
        const: app
      - title: DB_SG
        const: db
resources:
  WEB_SG:
    type: Cloud.SecurityGroup
    properties:
      name: WEB_SG
      constraints:
        - tag: 'nsx:compute_web_sg'
      securityGroupType: existing
  APP_SG:
    type: Cloud.SecurityGroup
    properties:
      name: APP_SG
      constraints:
        - tag: 'nsx:compute_app_db'
      securityGroupType: existing
  DB_SG:
    type: Cloud.SecurityGroup
    properties:
      name: DB_SG
      constraints:
        - tag: 'nsx:compute_db_sg'
      securityGroupType: existing
  vmOverlay:
    type: Cloud.SecurityGroup
    properties:
      name: NSX Overlay
      constraints:
        - tag: 'nsx:vm-overlay-sg'
      securityGroupType: existing
  WebDMZ:
    type: Cloud.SecurityGroup
    properties:
      name: WebDMZ
      constraints:
        - tag: 'nsx:compute_webdmz'
      securityGroupType: existing
  Cloud_Machine_1:
    type: Cloud.Machine
    properties:
      remoteAccess:
        authentication: keyPairName
        keyPair: id-rsa
      image: RHEL 8
      flavor: generic.small
      constraints:
        - tag: 'cloud_type:public'
      tags:
        - key: nsxcloud
          value: trans_ssh
      networks:
        - network: '${resource.Cloud_Network_1.id}'
          assignPublicIpAddress: false
          securityGroups:
            - '${resource.WebDMZ.id}'
            # Adding for NSX Cloud
            - '${resource.vmOverlay.id}'
            # if input.extraSG = "web" then WEB_SG else if imput.extraSG = "app" then APP_DB else DB_SG
            - '${input.extraSG == "web" ? resource.WEB_SG.id : input.extraSG == "app" ? resource.APP_SG.id : resource.DB_SG.id}'
  Cloud_Network_1:
    type: Cloud.Network
    properties:
      networkType: existing
      constraints:
        - tag: 'nsx:cloud_compute'

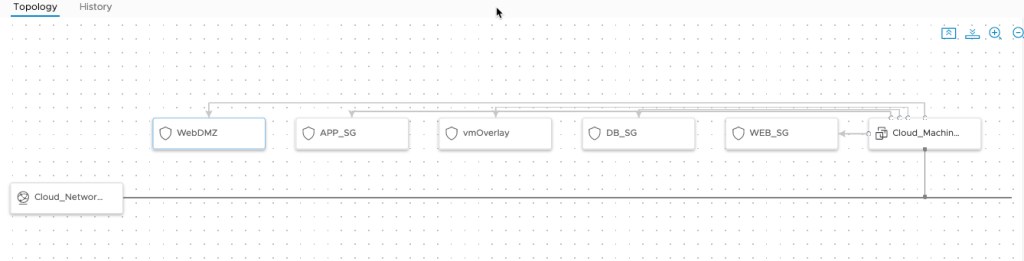

Let’s take a look at the deployment topology from vRAC.

This diagram indicates that all of the SGs where attached to the machine. That can’t be right. I wonder what the machine looks like in AWS.

Hmm, looks like a bug to me.

Now on to leveraging NSX Cloud with vRAC. Stay tuned.
