Managing Azure AKS clusters with VMWare Aria Automation

The use case presented to me for POC was to deploy a new Azure AKS cluster then install a basic application. Simple use case, but for those using VRA you know the kubernetes capabilities are all but non existent.

But after digging around and tinkering I figured a CodeStream (now called Pipelines) would probably fit the bill. The pipeline would run a terraform plan to build, and then destroy the deployment later on.

Keeping track of the state file between runs also presented a ‘problem’. After lots of kicking the tires I came up with a way to store the state file securing in an Azure Storage account. The state file in the container is simply the deployment name plus .tfstate. This allowed me to refer to it using day two actions and Event Broker Subscriptions (EBS).

Another issue that came up was deleting ‘codestream.execution’ resources when the deployment is deleted. Since these deployments are handled by terraform I needed another WF which called a pipeline to destroy the deployment when the eventType was DESTROY_DEPLOYMENT.

The files for this article can be found at azure-terraform-blog

Terraform is used to do the heavy lifting. The backend values get replaced with some pipeline inputs in the first pipeline task. The most important one is the deployment name. When destroying the deployment, terraform will pull the current state for that deployment and do its thing.

The CodeStream pipeline (Now Pipelines) uses a custom docker image. It includes the latest version of Terraform (Currently at 1.5.4), AZ CLI, Kubectl, and Helm (for another use case). It is stored on DockerHub as americanbwana/cas-terraform-154:latest.

I didn’t come up with the basic Template. I found this article on vEducate.co.uk. A very good starting point. ‘pipelineTask’ is used by the pipeline to either create (apply) or destroy the deployment. More on that later.

formatVersion: 1
inputs:
  pipelineTask:
    type: string
    title: Pipeline Task
    description: 'Create '
    readOnly: true
    default: create
resources:
  cs.pipeline:
    type: codestream.execution
    properties:
      pipelineId: 2b80427c...
      outputs:
        computed: true
      inputs:
        deploymentName: ${env.deploymentName}
        pipelineTask: ${input.pipelineTask}

vRA doesn’t delete the actual codestream.execution items when you destroy the deployment. A workflow called ‘Terraform delete AKS and Helm deployment’ is called by an Event Broker Subscription (EBS). Make sure to update the ‘codestreamPipelineId’ in the WF variables.

Event Broker Subscription

And finally on to the pipeline. The initialize task copies several variables into a file, which is then sourced by most stages. Terraform apply is only fired if the pipelineTask = ‘create’. And Terraform destroy is only fired when pipelineTask = ‘destroy’.

Pipeline

‘Get Service IP’ is also only fired if the pipelineTask = ‘create’. This task will get the IP address of WordPress and export it back to vRA.

Terraform Output
Assembler Output

Nuff for now. Happy coding.

vRO Action PowerShell Zip importing and use

One of my current tasks is to leverage vRealize Automation Orchestrator to meet the following use case.

  • Get the next available subnet from InfoBlox
  • Reserve the gateway and other IP’s in the new subnet
  • Create a new NSX-T segment
  • Create new NSX-T security groups
  • Discover the new segment in vRealize Automation Cloud
  • Assign the new InfoBlox to the discovered Fabric Network
  • Create a new Network Profile in vRA Cloud

This weeks goal was to get the InfoBlox part working. Well I had it working two years ago, but couldn’t remember how I did it (CRS).

Today I’ll discuss how to use vRO to get the next available subnet from InfoBlox. The solution uses a PSM I build, along with the PowerShell script which actually does the heavy lifting. One key difference between my solution and the one from VMware’s documentation is the naming of the zip file. This affects how to import and use it in vRO.

The code used in this example is available in this GitHub repo. Clone the repo, then run the following command to zip up the files.

zip -r -x ".git/*" -x "README.md" -X nextibsubnet.zip .

Next import the zip file into vRO, add some inputs, modify the output, then finally run it.

Within vRO, add a new Action. Then change the script type to “PowerCli 12 (PowerShell 7.1).

PowerShell Script Type

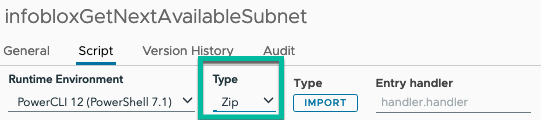

Change the Type to ‘Zip’ by clicking on the dropdown under ‘Type’ and selecting ‘Zip’

Click ‘Import’, then browse to the folder containing the zip file from earlier in the article.

You will notice the name is not ‘nextibsubnet.zip’ but InfobloxGetNextAvailableSubnet.zip. The imported zip assumes the name of the vRO Action.

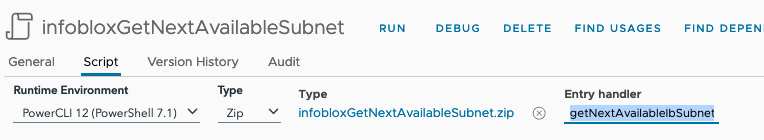

Now the biggest difference between my approach and the VMware way. If you look at the cloned folder you will see a file named ‘getNextAvailableIbSubnet.ps1’. The VMware document called this file ‘handler.ps1’. Instead of putting in ‘handler.handler’ in ‘Entry Handler’, I’ll use ‘getNextAvailableIbSubnet.handler. This tells vRO to look inside ‘getNextAvailableIbSubnet.ps1’ for a function called ‘handler’.

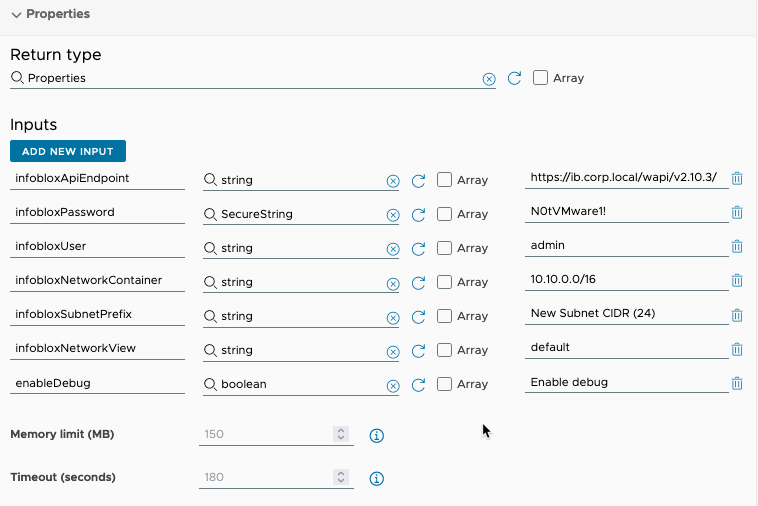

Next we need to change the return type to Properties, and add a few inputs.

Save and run. And if everything is in order, you should get the next InfoBlox subnet from 10.10.0.0/24. The results from the action run.

So there you go. Now on to the next adventure.

Code Stream Nested Esxi pipeline Part 2

In this second part, I’ll discuss the actual Code Stream pipeline.

As stated before, the inspiration was William Lams wonderful Power Shell scripts to deploy a nested environment from a CLI. His original logic was retained as much as possible, however due to the nature of K8S a few things had to be changed. I’ll try to address those as they come up.

After some thought I decided to NOT allow the requester to select the amount of Memory, vCPU, or VSAN size. Each Esxi host has 24G of Ram, 4 vCPU, and contributes a touch over 100G to the VSAN. The resulting cluster has 72G of RAM, 12 vCPUs and a roughly 300G VSAN. Only Standard vSwitches are configured in each host.

The code, pipeline and other information is available on this github repo.

Deployment of the Esxi hosts is initiated by ‘deployNestedEsxi.ps1’. There are few changes from the original script.

  1. The OVA configuration is only grabbed once. Then only the specific host settings (IP Address and Name are changed.
  2. The hosts are moved into a vApp once built.
  3. The NetworkAdapter settings are performed after deployment.
  4. Persisted the log to /var/workspace_cache/logs/vsphere-deployment-$BUILDTIME.log.

Deployment of the vCSA is handled by ‘deployVcsa.ps1’ Some notable changes from the original code include.

  1. Hardcoded the SSO username to administrator@vsphere.local.
  2. Hardcoded the size to ‘tiny’.
  3. Save the log file to /var/workspace_cache/logs/NestedVcsa-$BUILDTIME.log.
  4. Save the configuration template to /var/workspace_cache/vcsajson/NestedVcsa-$BUILDTIME.json.
  5. Move the VCSA into the vApp after deployment is complete.

And finally ‘configureVc.ps1’ sets up the Cluster and VSAN. Some changed include.

  1. Hardcoded the Datacenter name (DC), and Cluster (CL1).
  2. Import the Esxi hosts by IP (No DNS records setup for the hosts or vCenter).
  3. Append the configuration results to /var/workspace_cache/logs/vsphere-deployment-$BUILDTIME.log.

So there you go, down and simple Code Stream pipeline to deploy a nested vSphere environment in about an hour.

Stay tuned. The next article will include an NSX-T deployment.

Cloud Extensibility Appliance vRO Properties using PowerShell

In this article I’ll show you how to return JSON as a vRO Property type using vRA Cloud Extensibility Proxy (CEXP) vRO PowerShell 7 scriptable tasks.

First a couple of notes about the CEXP.

  • It is BIG, 32GB of RAM. However my lab instance is using less than 7 GB active memory.
  • 8 vCPU, and runs about 50% on average.
  • It deploys with 4 disks, using a tad less than 210 GB.

Why PowerShell 7? Well it was a design decision based on the customers PS proficiency.

Now down to the good stuff. Here are the details of this basic workflow using PowerShell 7 as Scriptable Tasks.

  • Get a new vRA Cloud Bearer Token
    • Save it, along with other common header values to an output variable named ‘headers’ (Properties)
  • The second scriptable task will use the header and apiEndpoint to GET the vRAC version information (About).
    • Then save version information to an output variable named ‘vRacAbout’ (Properties)

Getting (actually POST) the bearerToken is fairly simple. Here is the code for the first task.

function Handler($context, $inputs) {
    <#
    .PARAMETER $inputs.refreshToken (SecureString)
        vRAC Refresh Token

    .PARAMETER $inputs.apiEndpoint (String)
        vRAC Base API URL

    .OUTPUT headers (Properties)
        Headers including the bearerToken

    #>
    $body = @{ refreshToken = $inputs.refreshToken } | ConvertTo-Json

    $headers = @{'Accept' = 'application/json'
                'Content-Type' = 'application/json'}

    $Uri = $inputs.apiEndpoint + "/iaas/api/login"
    $requestResponse = Invoke-RestMethod -Uri $Uri -Method Post -Body $body -Headers $headers

    $bearerToken = "Bearer " + $requestResponse.token
    $authorization = @{ Authorization = $bearerToken}
    $headers += $authorization

    $output=@{headers = $headers}

    return $output
}

The second task consumes the headers produced by the first task, then GET(s) the Version Information from the vRA Cloud About route (‘/iaas/api/about’). The results are then returned as the vRacAbout (Properties) variable.

function Handler($context, $inputs) {
    <#
    .PARAMETER $inputs.headers (Properties)
        vRAC Refresh Token

    .PARAMETER $inputs.apiEndpoint (String)
        vRAC Base API URL

    .OUTPUT vRacAbout (Properties)
        vRAC version information from the About route

    #>
    $requestUri += $inputs.apiEndpoint + "/iaas/api/about"
    $requestResponse = Invoke-RestMethod -Uri $requestUri -Method Get -Headers $headers

    $output=@{vRacAbout = $requestResponse}

    return $output
}

Here, you can see the output variables for both tasks are populated. Pretty cool.

As you can see, using the vRO Properties type is fairly simple using the PowerShell on CEXP vRO.

The working workflow package is available here.

Happy coding.

Nested NSX-T cluster on vSphere 6.7U1

I took some time this week to update William Lams Nested vSphere 6.5 with NSX-T to Nested vSphere 6.7U1/NSX-T 2.3.1, to kickstart a new customer project.

This version updated some of the vCSA OVF JSON fields, and added support for PowerShell 6.1. It was tested against PowerCLI 11.2 on a Windows 10 machine.

The original post can be found at virtuallyghetto.

You can find the new, updated file(s) at nested-nsxt231-vsphere67u1.
